      What does the color of the LED light on my SWARM Vibration mean?


      The SWARM Vibration is starting up.

      Solid purple, white, purple to red


      The SWARM Vibration is trying to make connection

      Breathing orange


      The SWARM Vibration is auto-leveling. This takes ten seconds.

      Blinking blue / black


      The SWARM Vibration is measuring but has no server contact. *When the SWARM Vibration is factory default it won’t be measuring during breathing orange/white.

      Breathing orange / white


      The SWARM Vibration is measuring and has server contact via 3G/4G/LTE.

      Breathing green / white


      The SWARM Vibration is measuring and has server contact via WiFi.

      Breathing green / purple


      The SWARM Vibration is measuring and has server contact via the PoE adapter.

      Breathing green / cyan


      The SWARM Vibration is downloading guideline filters.

      Breathing cyan / black


      The SWARM Vibration is going to sleep (outside the scheduled measurement hours).

      Blinking green / black


      The SWARM Vibration performs a firmware upgrade.

      Rapidly flashing blue / black


      Blinking red / black - The SWARM Vibration is disturbed during auto-leveling. Make sure the SWARM Vibration is securely tightened to the wall and then initiate another auto-leveling from the measuring point overview page on the Honeycomb platform.

      Blinking red / black


      Low voltage detected, measurement quality might be impaired. Please check if the battery has enough charge and the power supply can deliver enough power for the SWARM Vibration to operate properly.

      Blinking orange / black

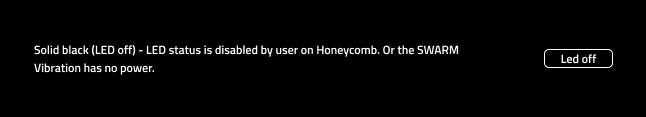

      LED status is disabled by user on Honeycomb. Or the SWARM Vibration has no power.

      Solid black (LED off)


      Please contact us via the chat at the bottom right of this page or via support@omnidots.com.

      Breathing red / black



      Notes on blinking / flashing / breathing

      • Flashing is toggling between colors with 50ms interval.
      • Blinking is toggling between colors with 1s interval.
      • 'Breathing' is gradually moving between colors with 1s interval.

      LED colors of the SWARM

      Below are the colors that the SWARM LED can have:

      LED_colors_of_the_SWARM
